Parameter
AZC Series
|
Product model |
Machine Weight |
Machine Output (kg) |
Machine Power |
Machine Output ratio
|
Color Selection Accuracy |
Minimum Resolution |
Dimension |
Machine Voltage |
|
AZC1 |
600 |
600 |
1.5 |
≥10：1 |
＞99.99% |
0.01 |
75×162×155 |
AC220V/50HZ |

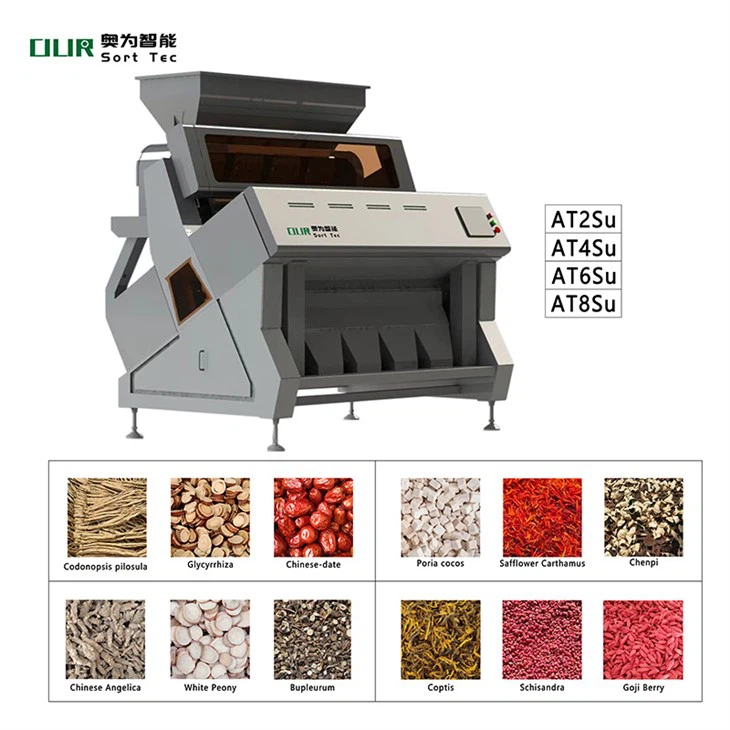

AT-Su Series
|
Product model |
Machine Weight |
Machine Output (kg) |
Machine Power |
Machine Output ratio
|
Color Selection Accuracy |
Minimum Resolution |
Dimension |
Machine Voltage |
|
AT2Su |
600 |
1200 |
1.5 |
≥10：1 |
＞99.99% |
0.01 |
250×131×150 |
AC220V/50HZ |
|
AT4Su |
800 |
1400 |
1.5 |
≥10：1 |
＞99.99% |
0.01 |
270×140×165 |
AC220V/50HZ |
|
AT6Su |
1000 |
1600 |
2.0 |
≥10：1 |
＞99.99% |
0.01 |
290×131×164 |
AC220V/50HZ |
|
AT8Su |
1200 |
2000 |
2.5 |
≥10：1 |
＞99.99% |
0.01 |
300×150×170 |
AC220V/50HZ |
AZM Series
|
Product model |
Machine Weight |
Machine Output (kg) |
Machine Power |
Machine Output ratio
|
Color Selection Accuracy |
Minimum Resolution |
Dimension |
Machine Voltage |
|
AZM300M |
200 |
400 |
0.3 |
≥10：1 |
＞99.99% |
0.01 |
150×88×124 |
AC220V/50HZ |
Feature
|
● No need for frequent manual adjustment of parameters, reducing operational difficulty and labor intensity, and improving the automation level of production. |
|
● LED light sources have the advantages of long lifespan, uniform color, and low energy consumption, and are widely used in optical sorting machines. |
|
● Equipped with a color touch screen and a window style human-machine dialogue interface. |
|
● The color sorter can accurately identify and separate materials that are difficult for the human eye to recognize. |
The corn optical sorting machine is a professional equipment that uses advanced machine vision technology for corn screening. When corn enters the sorting box from the hopper, it will be illuminated by a special light source. Ordinary corn has different reflection and absorption characteristics from other moldy, damaged, and insect infested corn. Then, the reflected light is received by an optical sensor and converted into an electrical signal, which is transmitted to the control system for comparison with the preset corn standard parameters. Corn that does not meet the preset standards is separated by high-speed rotation and airflow. At the same time, photoelectric sensors and computer vision technology are used for real-time detection and processing of materials, achieving fast and accurate sorting.
The corn optical sorting machine effectively separates corn particles of different colors and qualities, ensuring that the purity and quality of the final product meet customer requirements. Strong processing capability, capable of screening several tons or even dozens of tons of corn per hour, greatly improving production efficiency. Corn optical sorting machine is an efficient, precise, and labor-saving corn processing equipment.
The corn optical sorting machine is suitable for corn processing plants of various scales, and also reflects the process of agricultural mechanization, playing a positive role in improving rural economic benefits and promoting sustainable development of agricultural production. With the upgrading of global food security demand and the trend of agricultural intelligence, corn sorting machines will develop towards AI visual recognition and IoT integration, further combining big data analysis to optimize the sorting process. In developing countries, with the upgrading of the corn industry chain, the market demand for this equipment will continue to grow; In the fields of organic agriculture and high-end food, the requirements for sorting accuracy and customized functions will drive technological iteration, with broad application prospects and market potential.
