Pumpkin Seed Color Sorter

The color sorter with multi-dimensional space scanning can automatically learn and adapt to different material characteristics and sorting requirements.
High resolution CCD cameras can capture subtle color differences and detailed information of materials.
Equipped with a highly intelligent automation control system, it can automatically complete the material screening process based on preset standard parameters.
We can flexibly customize exclusive sorting modes based on the special needs of different users and the characteristics of different materials.

Parameter

AZC Series

Product model

Machine Weight
(kg)

Machine

Output

(kg)

Machine Power
(kW)

Machine Output ratio

Color Selection Accuracy
(%)

Minimum Resolution

Dimension
(cm)

Machine

Voltage
(V)

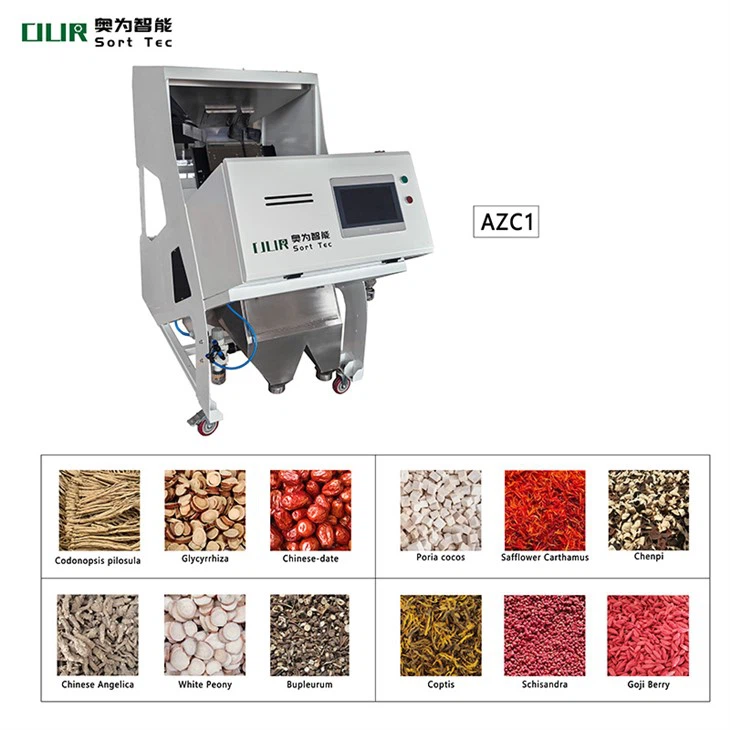

AZC1

600

1.5

≥10：1

＞99.99%

0.01

75×162×155

AC220V/50HZ

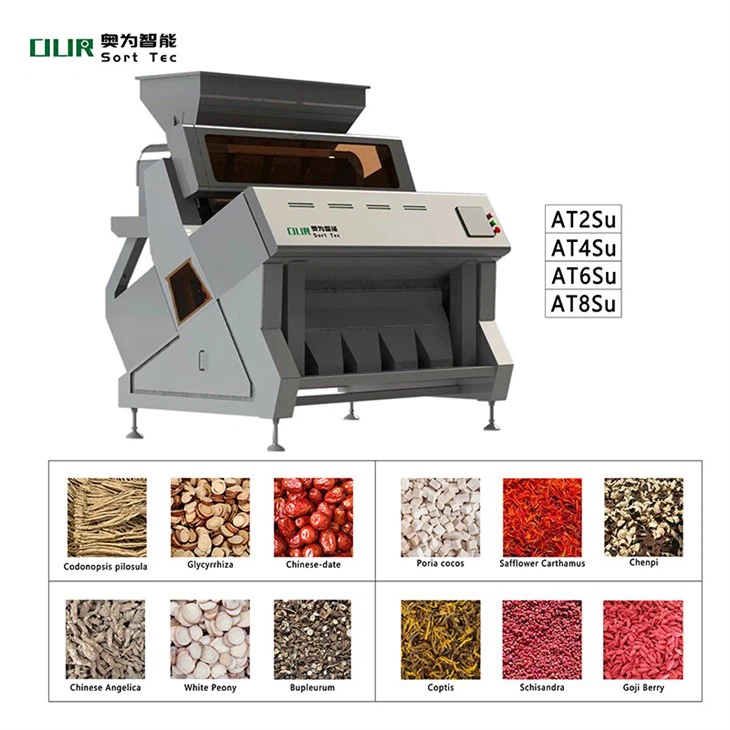

AT-Su Series

Product model	Machine Weight (kg)	Machine Output (kg)	Machine Power (kW)	Machine Output ratio	Color Selection Accuracy (%)	Minimum Resolution	Dimension (cm)	Machine Voltage (V)
AT2Su	600	1200	1.5	≥10：1	＞99.99%	0.01	250×131×150	AC220V/50HZ
AT4Su	800	1400	1.5	≥10：1	＞99.99%	0.01	270×140×165	AC220V/50HZ
AT6Su	1000	1600	2.0	≥10：1	＞99.99%	0.01	290×131×164	AC220V/50HZ
AT8Su	1200	2000	2.5	≥10：1	＞99.99%	0.01	300×150×170	AC220V/50HZ

AZM Series

Product model

Machine Weight
(kg)

Machine

Output

(kg)

Machine Power
(kW)

Machine Output ratio

Color Selection Accuracy
(%)

Minimum Resolution

Dimension
(cm)

Machine

Voltage
(V)

AZM300M

200

400

0.3

≥10：1

＞99.99%

0.01

150×88×124

AC220V/50HZ

Feature

● The color sorter with multi-dimensional space scanning can automatically learn and adapt to different material characteristics and sorting requirements.

● High resolution CCD cameras can capture subtle color differences and detailed information of materials.

● Equipped with a highly intelligent automation control system, it can automatically complete the material screening process based on preset standard parameters.

● We can flexibly customize exclusive sorting modes based on the special needs of different users and the characteristics of different materials.

Pumpkin seed color sorter are specialized equipment used for sorting pumpkin seeds. When pumpkin seeds enter the detection area of the color sorter, high-resolution cameras and optical sensors are used to identify and analyze the color differences, shapes, and sizes of pumpkin seeds through image processing technology. Finally, by driving an electromagnetic valve, pumpkin seeds that do not meet the standards are removed, thereby selecting high-quality ones.

High quality pumpkin seeds are flat oval shaped, with thin edges and thick center, smooth surface, and milky white or light yellow color. When screening, it is advisable to choose pumpkin seeds with plump particles, uniform size, and consistent color to ensure that the seeds are free from damage, mold, foreign objects, etc. The pumpkin seed color sorter can quickly process a large number of pumpkin seeds, improve the overall quality of pumpkin seeds, meet consumers' demand for high-quality products, and reduce labor intensity and labor costs.

Pumpkin seed color sorter is widely used in food processing, agriculture, oilseeds and other fields, playing an important role in the screening and grading process of pumpkin seeds. It also has extensive application value in food, agriculture and scientific research institutions.
