Parameter
AZC Series
|
Product model |
Machine Weight |
Machine Output (kg) |
Machine Power |
Machine Output ratio
|
Color Selection Accuracy |
Minimum Resolution |
Dimension |
Machine Voltage |
|

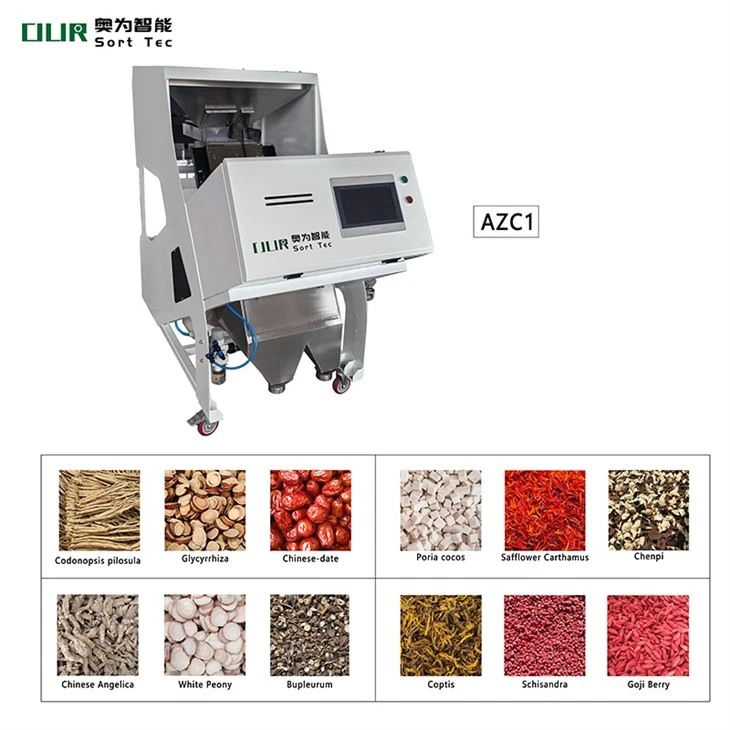

AZC1 |
600 |
600 |
1.5 |
≥10：1 |
＞99.99% |
0.01 |
75×162×155 |
AC220V/50HZ |
AT-Su Series
|
Product model |
Machine Weight |
Machine Output (kg) |
Machine Power |
Machine Output ratio
|
Color Selection Accuracy |
Minimum Resolution |
Dimension |
Machine Voltage |
|
AT2Su |
600 |
1200 |
1.5 |
≥10：1 |
＞99.99% |
0.01 |
250×131×150 |
AC220V/50HZ |
|
AT4Su |
800 |
1400 |
1.5 |
≥10：1 |
＞99.99% |
0.01 |
270×140×165 |
AC220V/50HZ |
|
AT6Su |
1000 |
1600 |
2.0 |
≥10：1 |
＞99.99% |
0.01 |
290×131×164 |
AC220V/50HZ |
|
AT8Su |
1200 |
2000 |
2.5 |
≥10：1 |
＞99.99% |
0.01 |
300×150×170 |
AC220V/50HZ |
AZM Series
|
Product model |
Machine Weight |
Machine Output (kg) |
Machine Power |
Machine Output ratio
|
Color Selection Accuracy |
Minimum Resolution |
Dimension |
Machine Voltage |
|
AZM300M |
200 |
400 |
0.3 |
≥10：1 |
＞99.99% |
0.01 |
150×88×124 |
AC220V/50HZ |
Feature
|
·Using a professional image acquisition and processing system to process high-quality images of materials and improve sorting efficiency. |
|
·Using high-frequency high-quality solenoid valves to achieve precise spraying and sorting of materials. |
|
·Equipped with a color touch screen, making operation simpler and more flexible. |
|
·Adopting advanced image processing technology and high-speed spraying system to achieve high-speed sorting of materials. |
The Sichuan pepper color sorter is an advanced optical sorting equipment used for screening and classifying Sichuan pepper products. When Sichuan pepper enters the detection area through the vibration device of the color sorter, its high-precision camera and optical system obtain the image information of Sichuan pepper, and transmit the image information to the processor in the control item for further recognition and analysis. It is compared with the preset standard parameters of Sichuan pepper, and finally, high-pressure airflow is sprayed out through a high-frequency solenoid valve to remove materials that do not meet the standards, thus achieving the screening and classification of Sichuan pepper.
The fruit of Sichuan pepper is spherical in shape, usually with bumps on the surface, dark red in color, and black in color. It has a pungent and numbing taste and can be used as a seasoning or medicine. The brighter the color of Sichuan peppercorns, the more mature and of better quality. When screening, it is also necessary to choose Sichuan peppercorns with plump particles and large openings, while ensuring the dryness of the screening. The Sichuan pepper color sorter mainly screens Sichuan pepper based on characteristics such as color, shape, and size. It uses optical technology and image recognition technology to identify and analyze Sichuan pepper, and then removes those that do not meet the requirements. The use of Sichuan pepper color sorter can greatly improve production efficiency, achieve precise screening of Sichuan pepper, and flexibly adjust according to different types of Sichuan pepper and different quality requirements, with wide adaptability.
The Sichuan pepper color sorter is widely used in industries such as Sichuan pepper processing plants and spice processing. It is a high-tech, high-efficiency, and high-precision sorting equipment that effectively improves the quality of Sichuan pepper, meets the market's demand for Sichuan pepper, promotes the upgrading of the Sichuan pepper industry, and plays an important role in Sichuan pepper processing and agricultural production.
